Product description

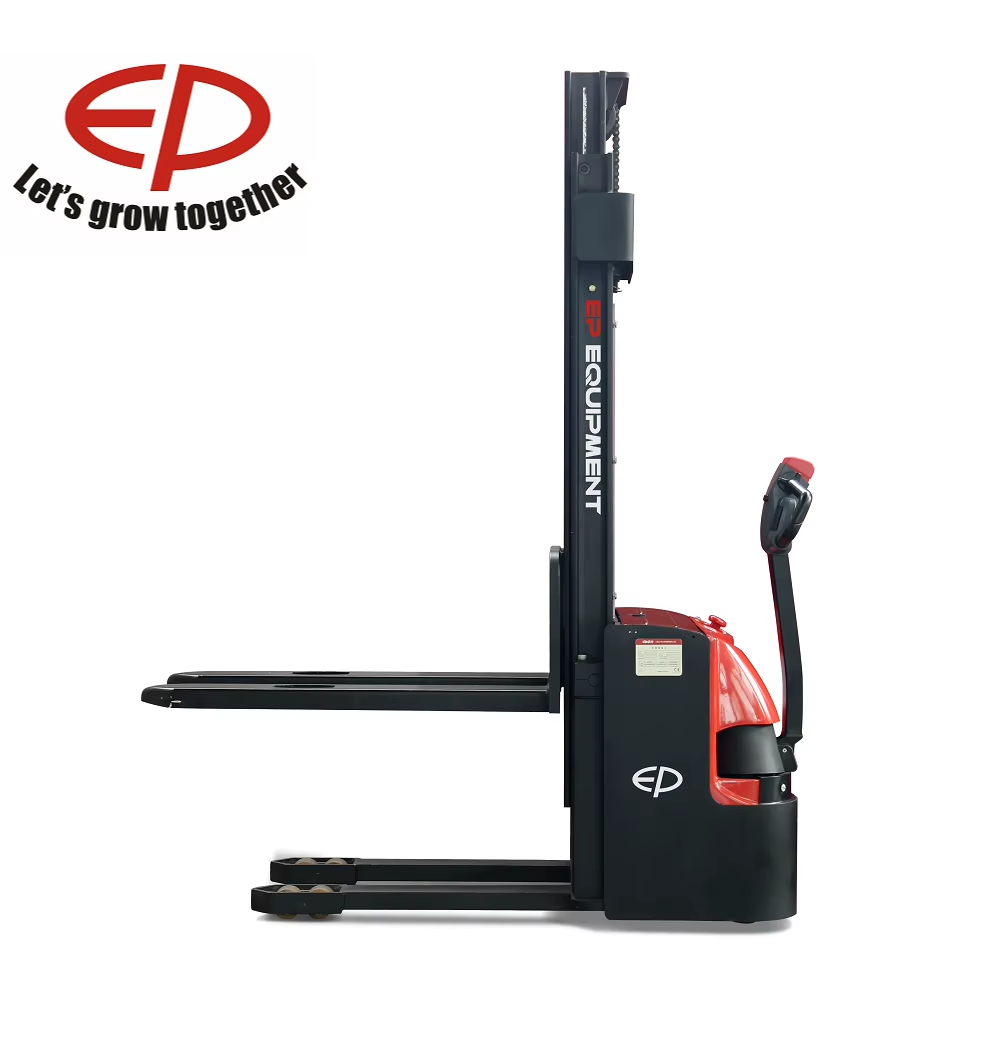

ES16-16WA
Pedestrian electric stacker 1.6t
| model | | ES14-14WA | ES14-30WA | ES16-16WA | ES18-40WA | ES20-WA |
| capacity | KG | 1400 | 1400 | 1600 | 1800 | 2000 |
| The length to the fork | Mm | 787 | 917 | 787 | 1022 | 787 |
| Overall width | Mm | 800 | 1470 | 800 | 1470 | 800 |
| Lifting height | Mm | 2950 | 3200 | 2950 | 3200 | 2950 |
| Be self-possessed | Kg | 1050 | 1350 | 1070 | 1455 | 1170 |
| Travel speed, full load/unload | Km/h | 5/5.5 | 5.5/6 | 5/5.5 | 4.5/5 | 4.5/5 |
| Driving unit | | communication | communication | communication | communication | communication |
| Turning radius | Mm | 1589 | 1545 | 1589 | 1645 | 1589 |
| Service brake | | | electromagnetism |
| Homing form | | | machine |
Ideal for heavy duty short reach handling and stacking tasks.
Long split tiller design allows for easy and convenient operation
Long side tiller provides wider visibility and safer operation.
Low noise but durable hydraulic unit, quality cylinders and hoses ensure high reliability of the hydraulic system.
Emergency reverse belly button protects the operator from injury.
Anti-rollback brake prevents the truck from skidding when the truck loses control or when traveling on a ramp.
With an ergonomic tiller head, all buttons are easily and comfortably accessible.

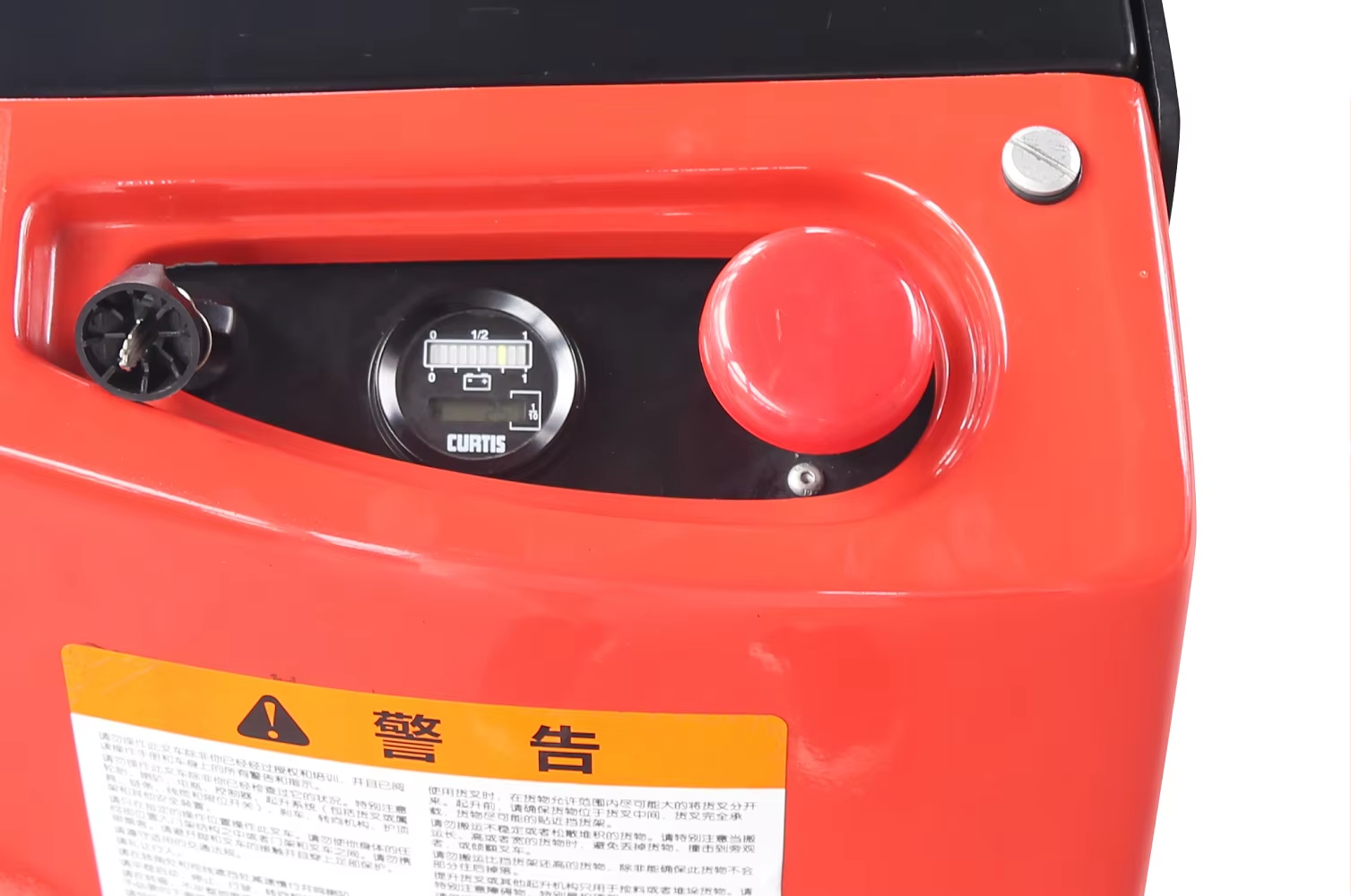

An hour meter and battery indicator light reminds the operator to charge the battery.
The mast and chassis are assembled for easy maintenance.
Packing and shipping
-----------------------------
AQ
Q1: Do you have a lithium-ion style?
A1: Yes! EP is a leading Li-ion material handling equipment company.
EP has its own BMS system for lithium ion batteries.
We have lithium-ion pallet trucks, forklifts, stackers, reach trucks, and more.
Q2:: What are the payment terms? Minimum order quantity?
A3: L/C, T/T. 1 set.
Q3: How to ensure the stable operation of the equipment?
A4: We do pre-shipment testing for each piece of equipment.
We have separate departments for quality control, delivery, sales and after-sales service.
We also have a strict management process from pre-sales to after-sales.
Q4: What about your after-sales service?
A5: 1-5 years warranty
1) Supported by subsidiaries in Belgium, Thailand and Japan.
2) Professional overseas after-sales service team to support our CAN and BMS system.
3) EP-care.com system solves the problem of time and distance to give the most effective support for parts.
Q5: When my unit arrives, how do I install it?
A6: For simple and manual equipment, EP will send manual instructions and operation videos.
If necessary, our engineers will go abroad to help customers with installation, operation and training.
