Product parameters
| model | unit | CBD15W-E |
| Drive mode | | Electric |
| Driving mode | | Walking style |
| Rated load | Q(kg) | 1500 |
| Load center distance | c(mm) | 600 |
| Dead weight (with battery) | kg | 205 179 |
| wheel | | polyurethane |
| Wheel size, front wheel | mm | Φ195X70 |
| Wheel size, rear wheel | mm | Φ80X93(70)/Φ74X93(70) |
| Wheel, front and rear quantity (x=drive wheel) | | 1X-2/2(4) |
| Lifting height | h3(mm) | 190/180 |
| Minimum/maximum height of operating handle in drive position | h14(mm) | 700/1250 |
| Overall length | h(mm) | 1654/1724 |
| Fork face length | 12(mm) | 504 |
| Width of car body | b1(mm) | 685/562 |
| Fork size | s/e/l(mm) | 53/160/1150(1220) |
| Outer width of fork | bs(mm) | 520/550/685 |
| Wheelbase center ground clearance | m2(mm) | 32/22 |
| Passage width, pallet 1000x1200 (1200 across fork) | Ast(mm) | 2260/2328 |
| Passage width, pallet 800x1200 (1200 placed along fork) | Ast(mm) | 2128/2365 |
| Turning radius | Wa(mm) | 1454/1524 |
| Road speed, full load/no load | Km/h | 4.3/4.8 |
| Lifting speed, full load/no load | mm/s | 25/30 |
| Lowering speed, full load/no load | mm/s | 35/25 |
| Maximum gradeability, full load/no load | % | 5/20 |
| service brake | | Electric braking |
| Battery voltage/rated capacity | V/Ah | 24/65(storage battery) |

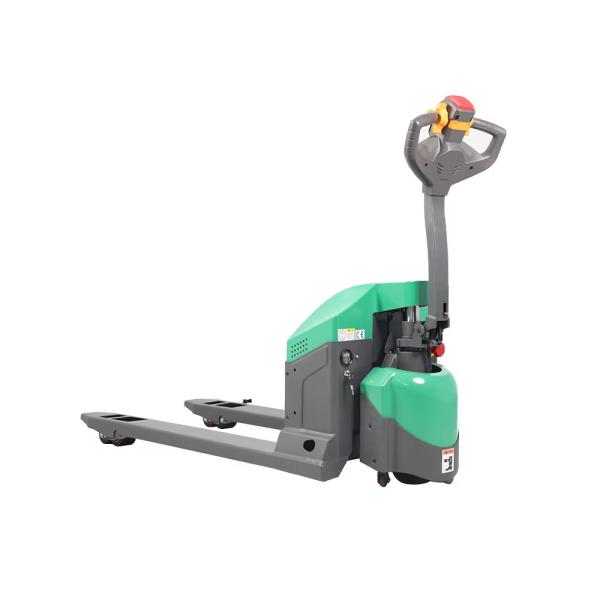

Product display
Product advantages Integrated design of electrical components; The whole vehicle has the characteristics of compact structure, flexible and compact, convenient maintenance, etc; The upper horizontal driving wheel is used to facilitate the replacement of motor and wheel, and the maintenance is convenient; Integral rocker arm design, smooth driving, high structural strength; The floating balance wheel mechanism can effectively prevent the side sway of the car when it is walking, The car runs smoothly; Turtle speed upright walking function.
Specification
