Newest 300% pre-stretch CE Approved automatic pallet stretch wrapping machine pallet wrapping machine
Product parameters
Brand Name | Smart Wasp |
| Application | APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Textiles |
| Automatic Grade | Automatic |
| Place of Origin | Jiangsu, China |
| Weight | 600 KG |
| After-sales Service Provided | Online support, Video technical support |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Core Components | PLC, Gear, Motor, Gearbox |
| Voltage | 220V/110V/50/60HZ 1 PHASE |
| Key Selling Points | Easy to Operate |
| Brand | Smart Wasp |
| Model | X0-MS |
| Name |
pallet stretch wrapping machine
|
| Packing material | LLDPE |
| Color | Grey |
| Packing speed | 20-30 pallets/H |
| Warranty | 1 year |
| clamp and cut film | have |
| control type automatic type | PLC automatic |
Product display
| | | | |
| Maximum wrapping speed | 20-30 loads/hour (1x1.2x1.8 m 2 layer NOT include loading and Unload time) | Turntable Sensor | SICK |
| Maximum pallet size | 1500mm | Position sensor | SICK(Germany) |
| Maximum Wrapping Height | 2000mm optional | PLC | PCB Integrated Circuit Plate |
| Turntable Speed | 0-12RPM(Adjustable) | Inverter | PCB Integrated Circuit Plate |
| Turntable Size | 1500mm | Travel Switch | OMRON |
| Machine Power | 1.2KW | Relay | OMRON(Japan) |
| Film Cut | Manual | Touch screen | X-LINE |
| Max Load Weight | 1500KG | Switch | Schneider |
| Standard Film Width | 500mm | | |
| Constant Film Delivery Force | Standard | | |
| Standard Pre-Stretch | 250-300% | | |
| Film Capacity | 250mm Diameter | | |
| Up&down Drive speed | 0-5.5m/min | |
| Fix Film on Pallet | Manual | OPTIONAL FUNCTION |
| Roping system | Optional | Ramp | Optional |
| Muti-layer function | Have | weighing scale | Optional |
| Machine Size | 2435*1625*2424mm(L*W*H) | Top pressure function | Optional |
| Machine weight | 530KG | | |
| Voltage | 220V | | |

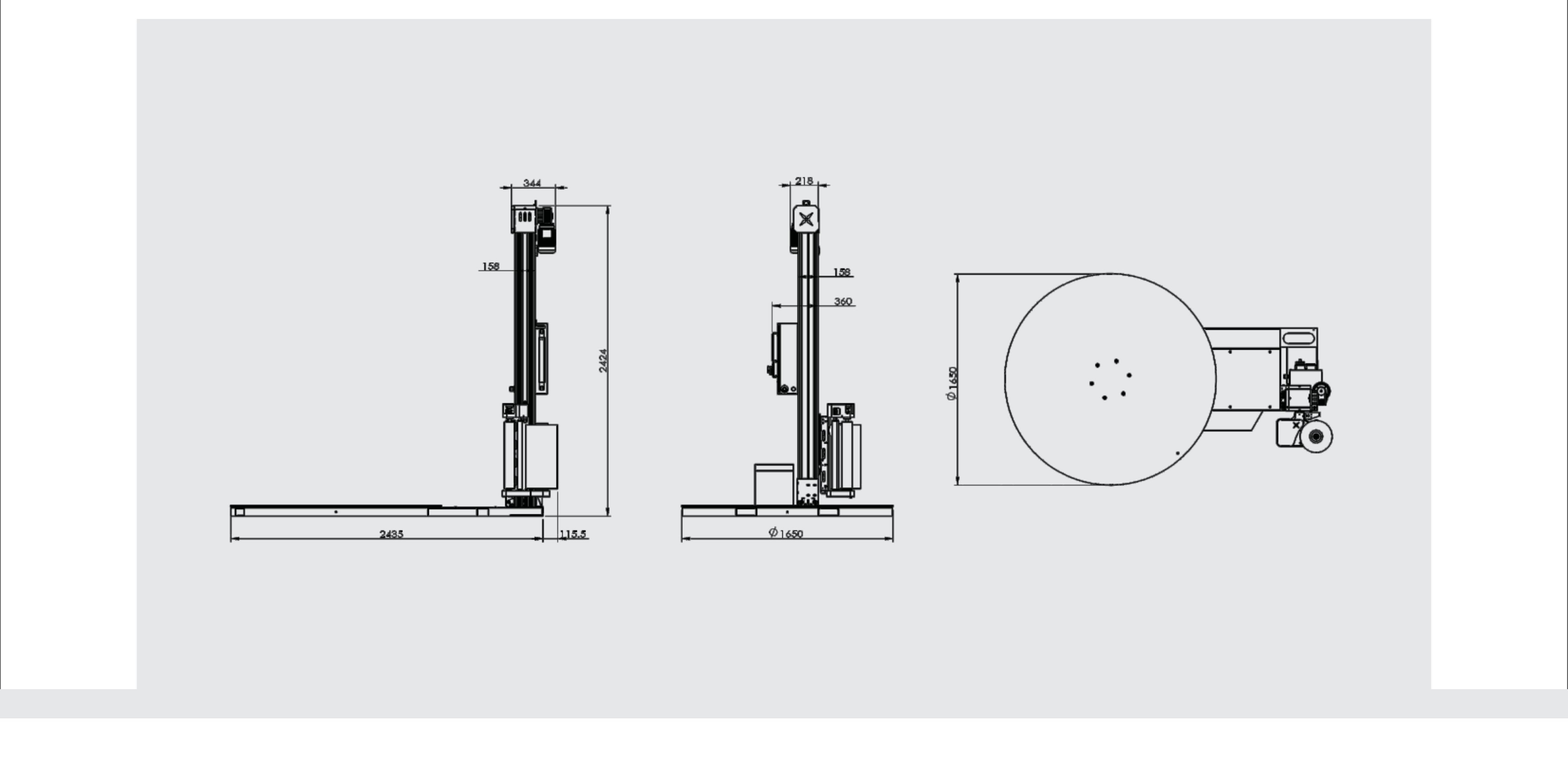

ENGINEER DRAWING
Detailed Images
Cost-saving pre-stretching film carriage
1. The touch screen precisely adjusts the wrapping tension
2. The maximum pre-stretching ratio can reach 350%, saving the amount of wrapping film
6 kinds of Memory Functions + One Button Start
1.Six kinds of wrapping memory function, make parameter setting easier.
2.One button start, let the machine operation more convenient.
PCB control system
1. Three independent chips control, stronger operation and longer life.
2. Integrated circuit system, maintenance is more convenient.
All-in-one alloy Aluminum Column + Lifetime Warranty
1.4000 tons extruded column, integrally formed, solid and durable
2.Modular assembly, easy to install
3.Double chain lifting system, more safety
4.LED tri-color light
Applied areas
Automatic pallet wrappers are widely used in warehouses, logistics, manufacturing, and the food industry. They ensure the stability of goods during transportation and storage, preventing damage and spillage, and are particularly suitable for bulk items.
Customer case
SMART WASP standard machine series include the x0ms X0ps X1 X100 X3 X300 X5 X500
All series machine will provide you with all the wrapping solution
SMART WASP
have provide automatic wrapping solution for LG ,Sharp.Heineken ,china tobacco ,we sue our professional design and rich experience let our customer use reliable automatic wrapping machine
