China Made Mini Small Electric Platform Stacker Fork Lift Forklift 2 Ton

Ask Lasest Price
Brand Name :	MiMA
Model Number :	MJ20
Certification :	ISO&ECE
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram, D/A, D/P, L/C
Supply Ability :	30 Pieces Per Month
Delivery Time :	1-5 pieces 25-30 working days. 10 pieces bulk order 35-40 days

Add to Cart

Product Details
Company Profile

China Made Mini Small Electric Platform Stacker Fork Lift Forklift 2 Ton

Product description

Model	MJ20SQC(narrow body)	MJ20SQCH(Wide Body)	MJ20BSQC(Narrow Body)	MJ20BSQCH(Wide Body)
Power Type	Battery	Battery	Battery	Battery
Driving mode	Seated	Seat-type	Seat-type	Seat-type
Rated load(kg)	2000	2000	2000	2000
Load center distance(mm)	600	600	600	600
Overall weight, including battery(kg)	7460	8140	7460	8140
Lifting height(mm)	4600~10000	4600~12500	4600~10000	4600~12500
Length(mm)	3830	3830	3830	3830
Width(mm)	980/1260	980/1400	980/1260	980/1400
Fork size(mm)	1100/100/50	1100/100/50	1100/100/50	1100/100/50
Outside distance of forks(mm)	250~890	250~890	250~890	250~890
Width of stacking aisle, 800x1200 along forks(mm)	1900	2100	1900	2100
Turning radius(mm)	2200	2200	2200	2200
Traveling speed, full/no load(km/h)	12/13	12/13	12/13	12/13
Battery, voltage/rated capacity(V/Ah)	48/600	48/600	80/460	80/460

MCC16 man-overboard three-way forklift truck

Product desplay

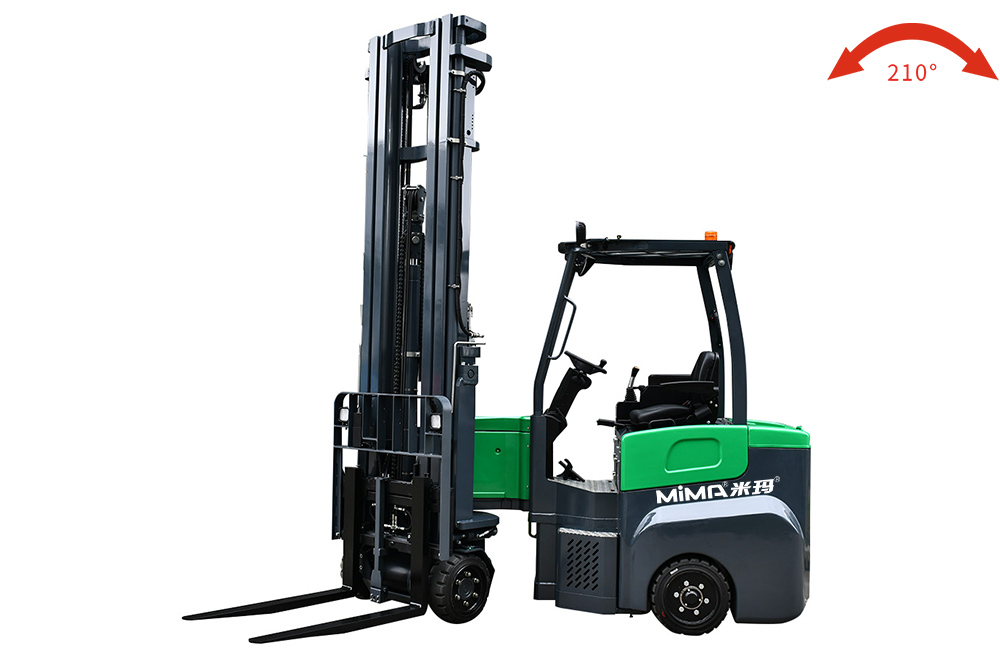

MJ Articulated Forklift Truck 2.0 tons

Narrow Aisle Forklift Truck Series
The new MJ series of high-performance articulated forklift trucks, covering both narrow and wide bodies, with a load capacity of 2 tons and a maximum lifting height of 12.5 meters, can be used both indoors and outdoors; they can satisfy medium and heavy-duty working conditions. At the same time, it pursues to meet the needs of customers for high working efficiency, high lifting speed and high traveling speed.

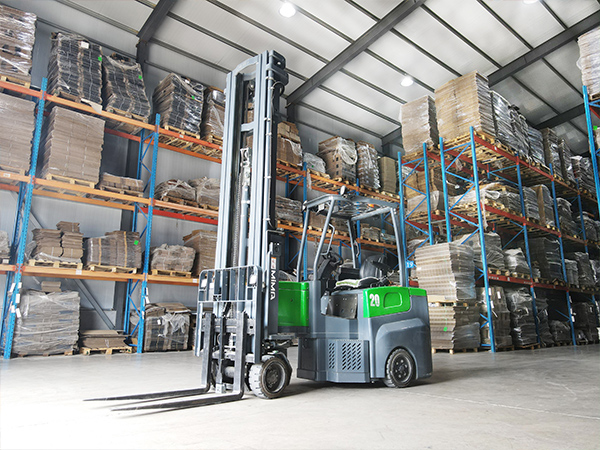

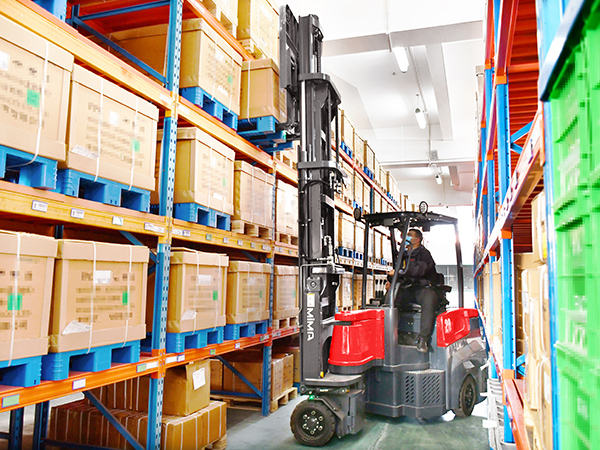

|Application Scenario
Narrow aisle intensive warehousing, high capacity warehouses.
Low lift model is suitable for low height intensive storage, internal and external transportation.
Workplaces and aisles where general trucks cannot meet the operational requirements.

application scenario

Product Features

Lifting height up to 12.5 meters
Rated load of 2 tons, lifting height up to 12.5 meters, lifting 3.3 meters without loss of load.

High operating efficiency
Equipped with one character laser and front cross laser, providing accurate direction indication.
Provides accurate orientation indication and high operational efficiency.

Ultra-narrow aisle down to 1.9 meters

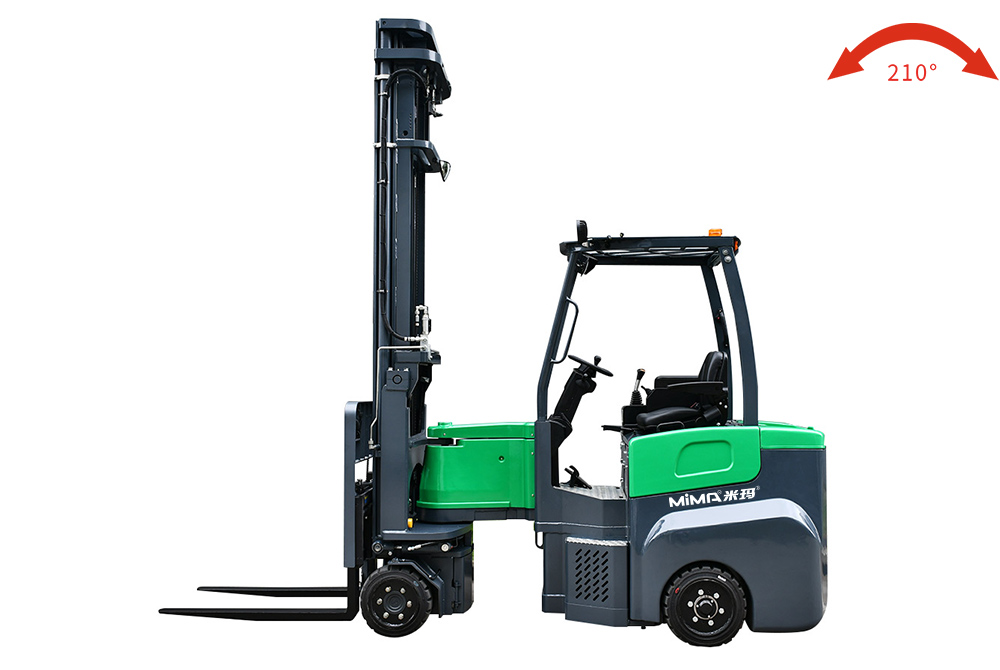

With a gantry swing angle of up to 210°, the stacking aisle is only 1.9 meters, increasing storage capacity by 50%.

Ergonomic design
The steering wheel is adjustable, the seat is adjustable fore and aft, and the backrest is adjustable.
Adjustable steering wheel, adjustable seat front and rear, adjustable backrest, all can be adjusted according to the driver's weight.

One-stop transportation inside and outside the warehouse
Solid rubber tires, adapting to various complex road conditions, one-stop handling and stacking inside and outside the warehouse.

Safer operation
Equipped with wireless high-definition camera system, providing
The wireless high-definition camera system provides the whole visualization service for the operator and ensures the safety.
