1.6 Tons Electric Stacker Lifter 14.2 Meters Lifting Height Human Mounted For Narrow Passages

Ask Lasest Price
Brand Name :	MiMA
Model Number :	MCC16
Certification :	ISO&ECE
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram, D/A, D/P, L/C
Supply Ability :	30 Pieces Per Month
Delivery Time :	1-5 pieces 25-30 working days. 10 pieces bulk order 35-40 days

Add to Cart

Product Details
Company Profile

1.6 Tons Electric Stacker Lifter 14.2 Meters Lifting Height Human Mounted For Narrow Passages

Product description

MCC16 man-overboard three-way forklift truck

Model	MCC16	MCC16SQ	MCC16H
Power Type	Battery	Battery	Battery
Driving mode	Standing/Seat-driven(man-on-top type)	Standing/Seat-driven(Man-on-top)	Standing/Seat-driven (Man-over-board type)
Rated load(kg)	1600	1600	1600
Load center distance(mm)	600	600	600
Overall weight, including battery(kg)	7700	8000	8900
Lifting height(mm)	6200~11200	6200~11200	8200~14200
Length(mm)	3715	3790	4015
Width(mm)	1244/1502	1244/1502	1244/1502
Fork size(mm)	1200/125/50	1200/125/50	1200/125/50
Outside distance of forks(mm)	260~725	260~725	260~725
Stacking aisle width, pallet 1200x1200(mm)	1650	1650	1650
Turning radius(mm)	2235	2310	2535
Traveling speed, full/no load(km/h)	10/10	10/10	10/10
Battery, voltage/rated capacity(V/Ah)	80/560	80/560	80/700

Product desplay

MCC16 series forklift truck is a man-on-top type narrow aisle three-way stacking forklift truck with a rated load of 1.6 tons, main lifting height of 4.5-12.5m, and secondary lifting height of 1.7m. The body does not need to be steered, and it can realize stacking and loading and unloading of goods on both sides of the aisle through 180° rotation of the forks and left and right side shifts. The cab can be lifted for high picking and inventory operations. It has two operation modes: standing driver and sitting driver, and has a good working field of vision.

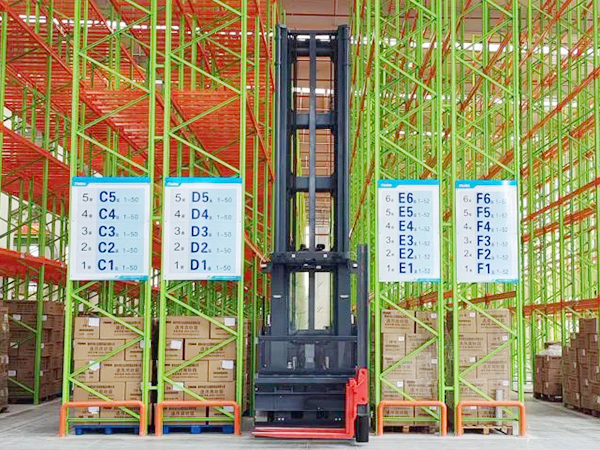

application scenario

Product Features

Ultra-narrow aisle to increase warehouse capacity:

the minimum net stacking aisle for the entire vehicle is only 1.65 meters, which significantly provides warehouse capacity.

Stacking and picking in one vehicle:

the driver can go up with the cab to carry out stacking and picking operations with good visibility, which improves work efficiency.

Comfortable and safe operation:

the seat can be folded down to meet the requirements of picking and stacking operations, and the arm guards are equipped with safety switches to enhance safety.

Shorter and safer braking distance:

large-diameter bearing wheels, equipped with all-wheel electromagnetic braking, better braking effect, higher emergency braking safety and shorter braking distance.

Forks can rotate 180°:

no need to steer the vehicle in the narrow aisle, 180° rotation of the forks and left/right side shift can be used to realize the stacking, loading and unloading of goods on both sides of the aisle.

80V full AC system, low energy consumption:

80V full AC maintenance-free system is adopted, which makes the whole truck respond more quickly and accurately, and has low energy consumption to meet the requirements of heavy working conditions.
