Product specifications
| Detailed Product | | Description |
| Model | | Tp 200 |
| Capacity | Tons | 200 |
| Max. Tire Diameter | inches | 8"-24'' |
| Total Length | mm | 2200 |
| Total Width | mm | 800 |
| Total Height | mm | 2500 |
| work platform ret height | mm | 350 |
| Operating Pressure | MPa | 15-25 |
| Cylinder Max.stroke | mm | 800 |
| Oil Tank Capacity | Liters | 110 |
| Electro-Motor | kw | 7.5 (380v) |
| Weight | kgs | 2300 |
| Press Speed/time | min | 2.5 |
Remarks: | mount and dismount 8”-24'' tires. Lifting platform is optional.
Customization is acceptable. |
| TOOL-I (press frame) | 8-9〃, 10-12〃, 15-16〃, 20'', 24〃 one for each | applicable for rim 8''-24'' |
| TOOL-II (Press barrel) | 10〃, 12〃, 15〃 one for each 20'' | applicable for rim 8''-24'' |
| TOOL-III (guide ring) | 12〃, 15〃, 20〃 24〃 one for each | applicable for rim 8''-24'' |
| TOOL-IV (backing ring) | 10〃, 8-9〃, 12 〃, 15〃, 20'', 24〃 one for each | applicable for rim 8''-24'' |
| guiding rod is optional | |
Introduction
Professional equipment for amending or replacing solid tires or OTR
tires.
2.0MN solid tire pressing machine is a special equipment for solid
tire loading and unloading,
It can also apply to the tires below 20".
This machine is a frame type structure.The hydraulic cylinder is
located above the piston movement from top to bottom, the
department. Platform, fixed on the piston rod and spherical
pressure box, firm structure, is made of high-quality materials
carefully assembled, so good performance. With the electric control
box independent.
The hydraulic system of the machine consists of hydraulic system
and hydraulic system of the auxiliary machine. This machine
hydraulic system is composed of the high-pressure pump, solenoid
valve, pressure relief valve, check valve, pressure indicator and
oil cylinder.
High pressure relief valve is the oil pressure setting of high
pressure pump, its maximum setting value is 25MPa.
Product display
Product strength
1. Efficient and accurate tire pressure monitoring
2. Quick and easy inflation and deflation of tires
3. Durable construction for long-lasting use
4. Versatile and compatible with a wide range of tire sizes
5. User-friendly interface with customizable settings and presets
Product features
- Heavy duty frame: The construction is welded by large-scale beam
and channel beam.
- High-grade Hydraulic Cylinder: The biston rod is grinded and
hard-chromium plated.
- Easy pull and press into the rims.
- Voltage and phase customized according to different power supply.
Free protection kit

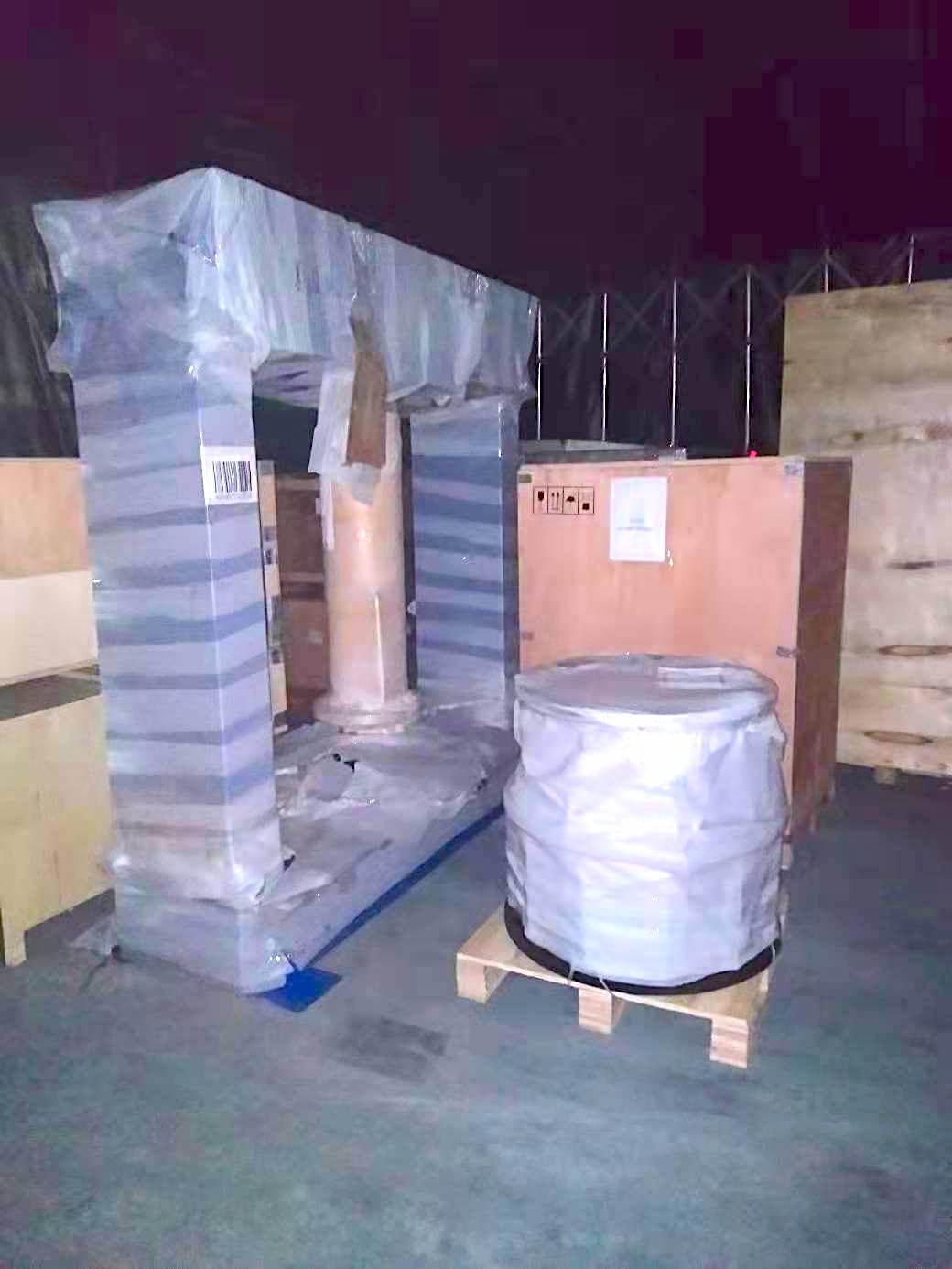

Packaging
We can do all parameters according to the customer's requirements
and demand
