Product parameters
| Model | ESCH24V25-O |
| Dimensions (mm) | Long * wide * high: 213*123*102 (mm) |
| Output maximum current (A) | 25 |
| Maximum power point (W) | 750 |
| Input voltage (VAC) | 100V~264V |
| Output voltage (VDC) | Lead-acid batter:31V; VRLA:29.4V;(customizable) |
| Applicable battery voltage | 24V lead-acid battery pack, (Customizable) |
| Maximum efficiency | 93% |
| Output voltage regulation precision | ±1% |
| Output current accuracy | ±1% |
| Working temperature | -30℃～-45℃ |
| Classes of seismic measure | SAEJ1378 |
| Cooling mode | Air blast cooling |
| Over temperature protection | 75℃±5 |
| Input under-voltage protection (VAC) | Under-voltage point 90V |
| Output over-voltage protection (VDC) | 31V±1 |
| Output over-current protection (A) | >110%*Maximum charge current |
| Output short circuit protection | When the output is short circuited, charger shutdown, and automatic
recovery after short-circuit solved. |
| Battery reverse protection | Charger shutdown and alarm when the wire is connected reversely, it
will automatically resume after wiring correctly. |

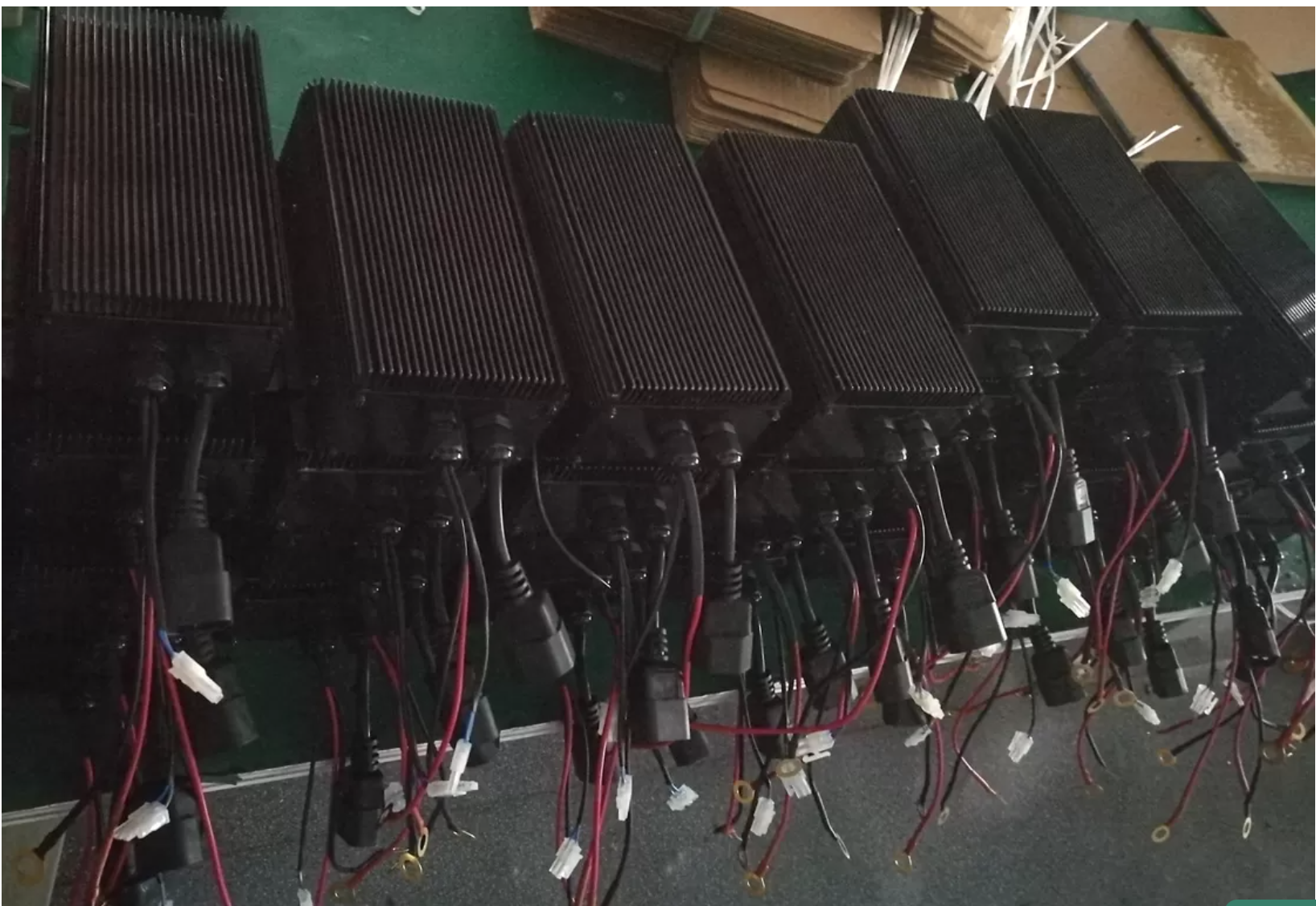

Product display
Product specification
- Charger integrates active power factor correction (PFC), can
achieve zero pollution of the power grid and avoid the impact of
large current grid;
- The input voltage range is very wide, AC100V-AC264V, suitable for
any region’s voltage level of the world, has a great convenience
for the power grid fluctuations and vehicle exports.
- The efficiency is very high, can reach more than 93%, the
traditional charger can only reach about 80%.
- The intelligent temperature compensation function of the charging
process can avoid the damage caused by the overcharge or under the
charge of the battery, and the service life of the battery can be
prolonged.
- Do the internal charger seismic processing, seismic grade up to
SAEJ1378, fully meet the electric vehicle-using standard.
- Use the LLC resonance technology, whole charging process working
under soft-switching condition, with less heating of the whole
machine.
- (pallet walkies battery charger, pallet jacks battery charger)
Product characteristics
- Single Chip Microcomputer (SCM) according to the lead-acid
batteries tolerance current capacity, life curve, gas analysis
point and other information to complete the full charge of the
whole process;
- With the environmental temperature compensation function, to ensure
that the temperature of the weather conditions, can automatically
resist over-charge and under-charge;
- With pulse charging function, the battery is filled with the
premise of ensuring the best life of the battery；
- After three paint processing and dustproof design, the reliability
of the operation is improved;
- With digital display function, can display online charging current,
voltage, charging time;
- (pallet walkies battery charger, pallet jacks battery charger)
Packaging and delivery
Packaging Details:
Cartons,
Delivery Detail:
In 7 to 15 days against the order confirmation and deposit.

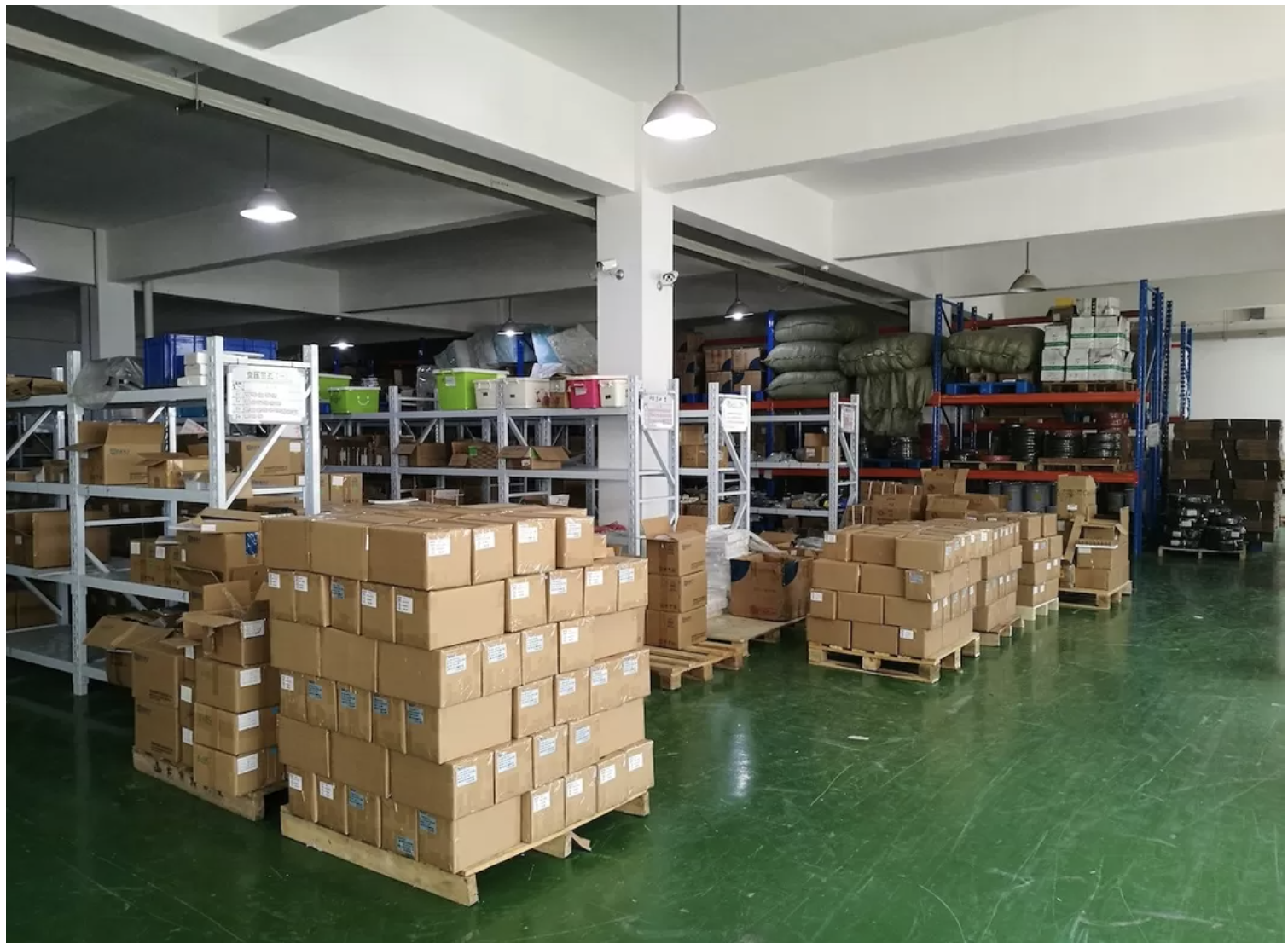

About us
