Liugong CPD15 Forklift Traction Battery 48 Volt 400Ah/5hrs High
Performance
| Type | Lead Acid Forklift Battery |
| Application | Electric Forklift Truck |
| Standard | BS standard |
| Technology | Tubular Positive Plates |
| Model | 48V 400Ah/5hrs |
| Cell Quantities | 24 cells |

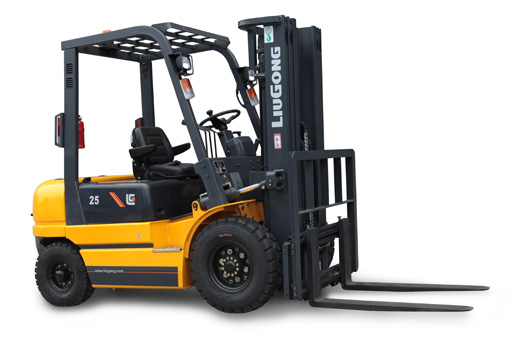

| Forklift Made | Liugong CPD15 |
| Connection Type | Soft connection |
| Steel Tray Size | Standard or Customized |
Product Catalogs --- BS standard
| Type | 5hr. Capacity(Ah) | Overall Dimension (mm) | Wet Weight (kg) | Poles | Cell Volt (v) |
| 2DB200 | 200 | 45x158x622x653 | 13 | 2 | 2 |
| 3DB300 | 300 | 61x158x622x653 | 18.1 | 2 | 2 |
| 4DB400 | 400 | 77x158x622x653 | 23.3 | 2 | 2 |
| 5DB500 | 500 | 93x158x622x653 | 28.4 | 2 or 4 | 2 |
| 6DB600 | 600 | 109x158x622x653 | 33.6 | 2 or 4 | 2 |
| 7DB700 | 700 | 125x158x622x653 | 38.8 | 2 or 4 | 2 |
| 8DB800 | 800 | 141x158x622x653 | 44.5 | 4 | 2 |
| 9DB900 | 900 | 157x158x622x653 | 49.6 | 4 | 2 |
Product Strength
1. High quality flooded lead acid battery
2. >= 1500 times cycle life.
3. High performance tubular positive plates
4. Meet IEC 60254 standard.
5. CE,ISO9001 and ISO14001.
6. Lower distilled water consumption
7. Environmental and healthy
8. Nice design and good quality
9. Easy to use and durable
10. Low current recharge
11. Competitive price
12. Wooden case packaging
13. Automatic watering syste and Argitation system.
14. Larger and thicker plate means less internal corrosion
Forklift/Traction battery’s Maintenance
1. Changing the electrolyte
a) Cut or saw the cover-to-jar sealed 20mm and remove the plates
group out of the jar;
b) Measure the specific gravity and pour out the electrolyte and
wash out the sediment and dry it; c) Reinstall the plates group
into the jar, then heat seal the cover to jar with the same
material with the jar;
d) Add electrolyte with the same specific gravity to the specified
level;
e) Charge the cell, adjust the specific gravity and the level of
the electrolyte.
2. Changing the jar Pour the electrolyte into the new jar, and see
a, c, d, e of above1. The time for plates group exposed in air
should not be too long to minimize the oxidization on the negative
plates, or put plates group into the water (the water should
stipulate the requirements of JB/T 10053-1999). It should be
conducted after the discharge at 5-hour rate for analyzing and
changing, the electrolyte, changing the jar and raise out the
plates group for inspection and cleaning the sediment.
Traction Battery's Storage Tips
1. The cells not charged should store in the clean and dry room and
the relative temperature should be 5-45℃ , and the cells should not
be stored for more than two years after ex-work, if the storage
time exceeds two years, the charging time should prolong.
2. The cells after initial charge and after ex-work:
a) the cells should be stored at the temperature of 5-45℃ and the
relative humidity is good.
b) Remove dirt from the top of the cells and clean the electrolyte
with water or the soda solution of 5-10 ﹪ and keep the surface of
the jar clean and dry.
c) Avoiding the sun and hot machines. d) Charge the cells with the
second current of normal charge as the complementary charge every
month.
