Solid Tire Press Machine
Model: TP120
| Model | TP120 |
| Nominal pressure | 1.2 MN |
| Work hydraulic | 15 Mpa |
| Max Tire Size | 15 Inches |
| Max Cylinder Stroke | 600 mm |
| Motor | 4 KW |
| Oil Tank Capacity | 90 L |
| Size | L2050xW650xH2200 mm |
| Weight | 1600 kg |
Introduction
Professional equipment for amending or replacing solid tires or OTR
tires.

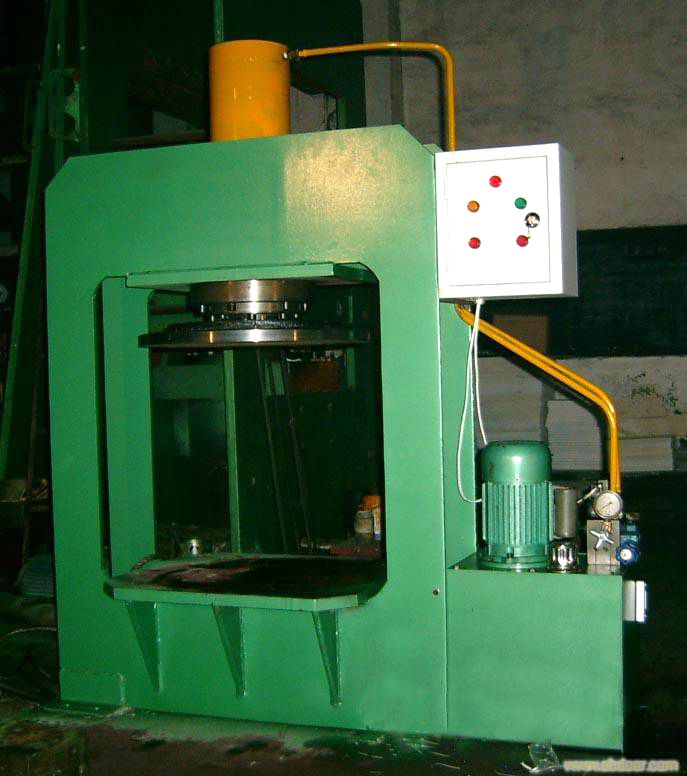

1.2MN solid tyre pressing machine is a special equipment for solid
tire loading and unloading,
It can also apply to the tyres below 15 ".
This machine is a frame type structure.The hydraulic cylinder is
located above the piston movement from top to bottom, the
department. Platform, fixed on the piston rod and spherical
pressure box, firm structure, is made of high-quality materials
carefully assembled, so good performance. With the electric control
box independent.
The hydraulic system of the machine consists of hydraulic system
and hydraulic system of the auxiliary machine. This machine
hydraulic system is composed of the high-pressure pump, solenoid
valve, pressure relief valve, check valve, pressure indicator and
oil cylinder.
High pressure relief valve is the oil pressure setting of high
pressure pump, its maximum setting value is 12MPa.
Product Features
- Heavy duty frame: The construction is welded by large-scale beam
and channel beam.
- High-grade Hydraulic Cylinder: The biston rod is grinded and
hard-chromium plated.
- Easy pull and press into the rims.
- Voltage and phase customized according to different power supply.
Customer Satisfaction
Our goal is to allow you to deliver the products that your clients
need. To do this, we are committed to manufacturing quality and
reliable machinery. Our success is based on our customers
satisfaction, your satisfaction is directly linked towards the
quality and reliability of our hydraulic machinery.
Operator Safety
With the multiple features of our presses which are both standard
and optional, we know that our hydraulic presses are not only good,
they are operator friendly. We offer a front security guard which
increases operator safety, important to us and to your business.
Our strict adherence to quality standards ensures sound, safe and
reliable machinery.
